SOLDER PASTE MIXER

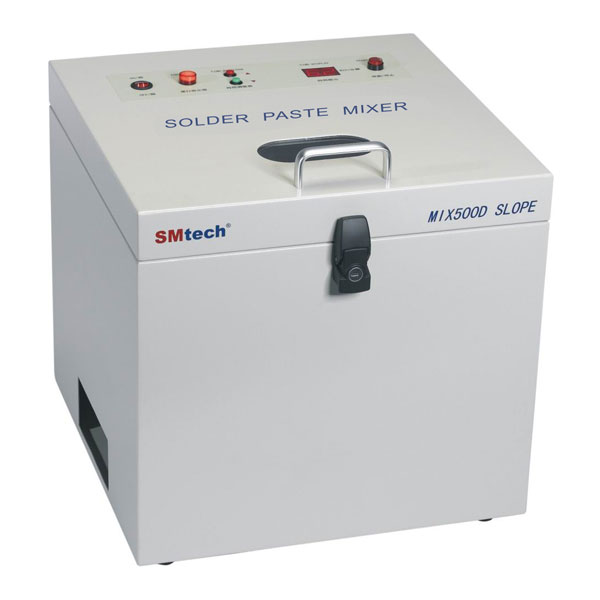

SMtech Solder Paster Mixer MIX500D SLOPE
Mixes the solder paste to a liquid state effectively and evenly to achieve better results in stencil printing and reflowing processes.
Product Information
Applications:
SmartSMT MIX500D SLOPE solder paste mixer is used to mix the solder paste to a liquid state effectively and evenly to achieve better results in stencil printing and reflowing processes.

Features:

● The solder cream jars are placed in 45 angle, and run    around its axis line, so the solder cream will not adhere to the jar cover. ● Double security design to assure the safety of operators.
● The air bubbles can be eliminated while the solder paste is being mixed. .
● The control of the solder paste mixing is considered fully with using special control circuit.
● The rotating speed has proved by practice, so the impact against the tin power and the effect to solder paste quality in the rising temperature are avoided.

Specifications:

Power 220V AC(50hz) 60W or 110VAC(60hz) 60W
Rotating Speed Primary rotating:1000RPM;Second rotating:380RPM
Capacity 500g*2jar
Jar Diameter Φ60-Φ67
Time Setting 0.1～9.9mins, adjust 0.1min per time; 10～30mins, adjust 1.0min per time.
Display & Alarm LEDdigital display、light blink and buzzer warning
Machine's Dimension 420*420*427mm(W*D*H)
Packing Dimension 520*540*540mm(W*D*H)
Net/Gross Weight 30KG/45KG


MIX500D SLOPE DATASHEET.PDF
