Application:

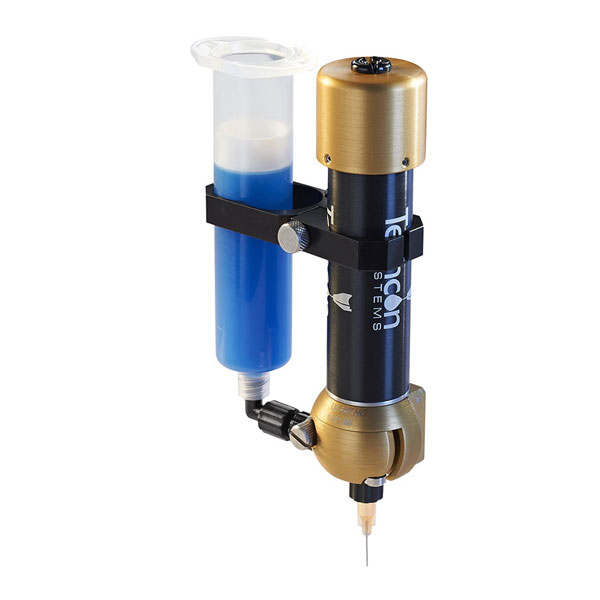

TechconSystems TS5000DMP-DCX rotary valve contains a disposable feed screw for easy maintenance and reliable dispensing. With a feed screw made of Delrin®, the valve is designed for use with two-compound and abrasive materials. The DMP valve has a hinged doorway in the front that opens easily so the disposable auger can be removed, disposed of, and replaced within seconds while the line is still in operation. No cleaning or refurbishment of the valve is required.

Features:
14V watt motor.

Disposable feed path – no cleaning required.

Eason opration.

Choice of 16 pitch, 8 pitch and 6 pitch feed screws.

Ideal for 2-part and abrasives fluids.

UV compatible.

Closed-loop motor control with encoder feedback (encoder version).

Specifications:

Size W x L x H:	1.45” x 3.6” x 5.88” (37mm x 91mm x 149mm)
Weight:	0.75lb (240g)
Fluid Inlet:	Female Luer lock
Fluid Outlet:	Male Luer lock
Mounting:	1” (25.4mm) body channel or valve bracket
Maximum Fluid Pressure:	30psi (2.1bar)
Wetted Parts:	Delrin®, Nylon, Viton®
Cycle Rate:	Exceeds 300 cycles/min
Material Viscosity Range:	30,000 - 1,300,000cps
